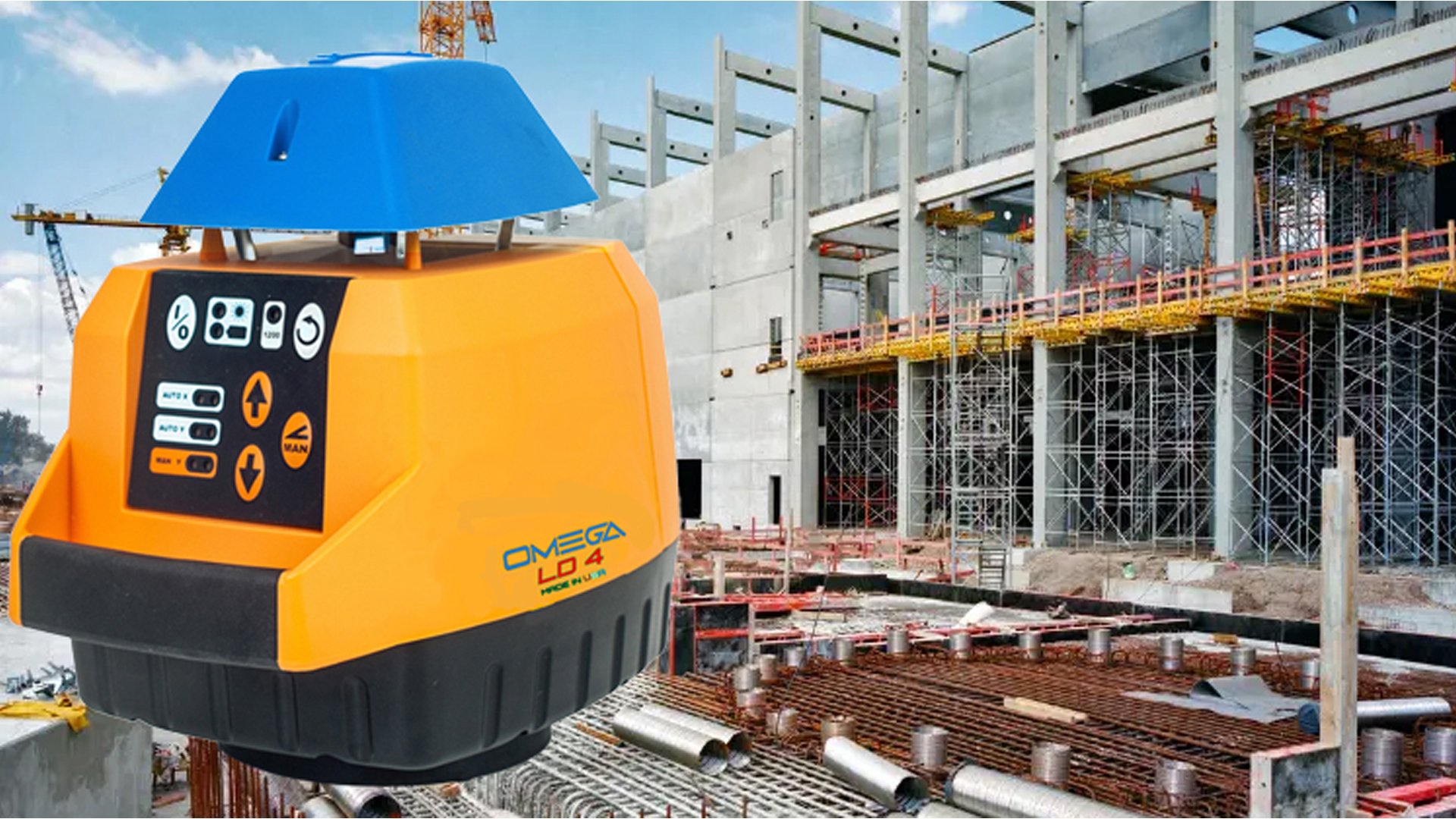

OMEGA LASER rotary laser level


​
​Seriously Precise - Amazingly Reliable​

  • Individually Calibrated And 100% Tested To Ensure Highest Accuracy All Working Temperatures
  • 7 Arc-Second Precision - Less Than 3/64" At 100 Feet
  • 100% Drop-Tested - Calibration Does Not Change
  • 7,200' working diameter (3,600 Foot Radius)
Military drop test certified OMEGA laser IP67 rated OMEGA laser
Unlimited 8-Year Warranty
View Specifications
OMEGA LASER Made In USA

Excels In Every Application

Precision Engineering for Heavy Construction and Wide-Scale Agriculture

Yellow excavator digging and moving sand and dirt pile at construction site on clear blue sky day

Construction

Foundation Leveling, Floor Installation, Site Grading And Machine Control.

Yellow laser level tool positioned against a measuring scale ruler on white background

Surveying

Topographic Surveys, And Elevation Mapping For Land Development Projects.

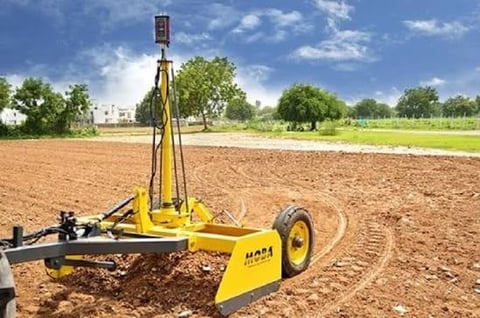

Yellow agricultural irrigation equipment on tilled soil with green fields and trees in the background under blue sky

Land Leveling

Aids In Water Management For Crops Such As Rice, Wheat, Cotton, Soybeans And Lentils.

Highway construction site with heavy machinery, workers, and equipment on concrete roadbed under yellow crane and earthen embankments.

Infrastructure

Road Construction, Pipeline Installation, And Bridge Alignment For Civil Engineering Projects.

Working Range
3,000' Diameter Working Range
Precision Leveling
Accuracy
7 Arc Seconds or better - (1/32" Per 100')
Battery Life
200 hrs !
​With Alkaline
​Batteries
Protection Rating
IP67 & MIL-810G(H)

Why Professionals Trust The Omega LD 4

Advanced Propriety Solid State Tilt Sensors With Industry-Leading Thermal Compensation. Whether it's 20°F or 120°F The Omega "Level" Stays Level !

Extensively 'Battle' Tested For Over 20 Years - IP67-Rated Against Dust And Water - MIL 810G/H
​Rugged, Accurate And Durable

Not Just "Tough"—It's Built To Survive Severe Jobsite Drops And Keep Working Without A Recalibration Trip

Extended Battery Life — Up To 200 Hours With Four C-Alkaline Batteries - Keeps Your Crew Productive

Intuitive Operation — Simple One-Button Self-Leveling — Minimal Training

Huge Range — Cover Up To 3,000' Diameter With Included R9 Receiver - Or Use Your Own Receiver

Great For Large-Scale Projects Such As Huge Commercial Sites, Highway Construction Or Airport Runways

Semi-Automatic Slope (one axis auto-levels) Radio Remote Controls Tilt - Indispensable For Grade Matching

Extended Support — 100% Backed By Our COMPREHENSIVE EIGHT YEAR WARRANTY. We Stand Behind Our Products. Always Free Fast Warranty Repair

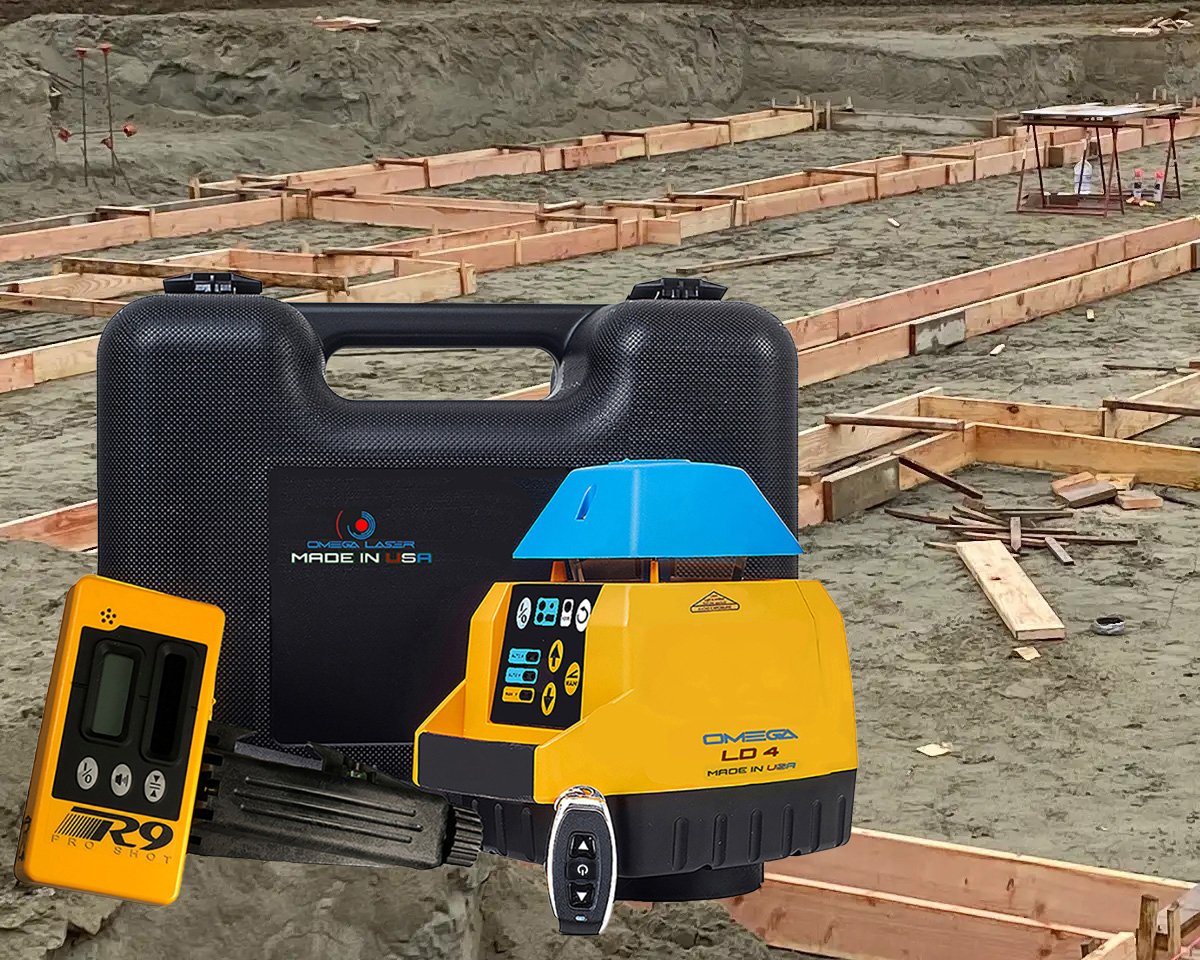

OMEGA laser system product image
8 Year
Warranty
​EVERYTHING is covered!
Precision Engineering

Technology That Sets the Standard

High Quality You Can Rely on. Each OMEGA LD 4 Laser Is Hand Built In The USA And Fully Tested By Our Skilled Technicians.

Advanced Self-Leveling System

Astronomy Grade Tilt Sensors - Sub-Arc Second Resolution

Safe Low Power Laser Diode

2.5mW Class 3R Laser Beam Achieves Huge Range With Low Power

No Need For Rubber Padding On The Housing

All Leveling Internals Are Solid And Are Hard Bolted To A Thick Reference Plate. No Moving Internal Components, The Entire Housing Tilts To Level.

Custom Compact Carrying Case

Fits Behind A Truck Seat

Close up scene the fiber laser cutting machine cut the metal plate control by CNC program. The high technology sheet metal manufacturing process by laser cutting machine.

Ready To Experience Precision Without Compromise?

Join Thousands Of Professionals From Around The World Who Have Trusted the Unique OMEGA LASER Design For More Than 20 Years.

Watch Leveling Animation Video
Free Shipping
Expert Technical Support
8-Year All Inclusive Warranty

       Technical Specifications


Laser: 650 nm, Class 3R -2.5mW

Laser Accuracy: 1/32" (Or Better) Per 100 Ft, From 10°F To 130°F

Compensation Method: Electro-Fluidic Sensors Servo Motor Self-Leveling

Operating Range: Up To 3,000' Diameter With The R9 Receiver. Also Compatable With All Popular Rotary Laser Receivers

Out Of Level Warning:  Laser Turns Off, LED's Flash, Rotor Stops

Intelligent H.I. Monitor: Turns Laser Off If The Height Of The Laser Changes by more than 1/8". Unaffected By Wind Or Vibration

Selectable Rotation Speed: 600 /1200 RPM

Operating Temperature: -32°F To 130°F

Storage Temperature: -32°F To 160°F

Battery Life: 200 Hours! 4 "C" Size Alkaline

Dust And Water: IP 66 Dust And Water Spray

Low Battery Indicator

Weight: 4.5 lbs (With Batteries)

Dimensions: 15" L x 12" W x 8" H
